GOLIATH SERIES CNC ROUTER

REQUEST A QUOTE



DESCRIPTION:

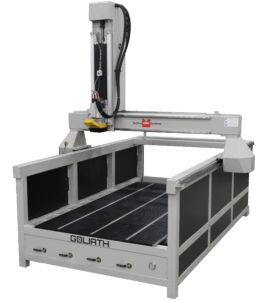

Techno CNC Systems Goliath Series CNC Router is manufactured using the highest quality industrial grade CNC router components with all steel construction and superior components such as precision linear bearings and rails. The Goliath Series CNC Router features a 12 HP HSD high frequency automatic tool changer spindle with 8-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes brushless AC servo motors and controls with a very easy-to-use hand-held controller

Goliath BROCHURE

FEATURES:

  • 12 HP HSD high frequency automatic tool changer spindle
  • Maintenance free brushless Yaskowa AC servo motors and drives
  • Automatic tool calibration pads
  • 4-zone vacuum T-slot table
  • 8-position tool rack
  • 24″ Gantry with 30″ z-stroke
  • Easy to use Hand-Held Controller
  • Open architecture works with all industry standard CAD/CAM software

VIEWS:

FRONT:

SIDE:

VIDEOS:

REVIEWS:

 “We used to print these parts and have them sent to a local machine shop for finishing. Outsourcing the machining was time consuming and due to the abrasive makeup of the composite, the machine shops cut results were inconsistent and required allot of hand finishing when returned. Our teams had to sand and finish each machined part by hand which was extremely time consuming. With the addition of the new Techno machine this now allows us to keep the work in-house and requires virtually no hand finishing saving us allot of time and money. We are extremely pleased the new Techno Goliath machine will help stream line our manufacturing process with increased efficiency, quality and accuracy” – Wichita State University Managers

. – Witchita State University, Managers

FEATURES

SPINDLE

The Goliath Series machine comes standard with a 12HP HSD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders, and is fully programmable with speeds from 6000 to 24000 RPM, and comes complete with a pneumatically retractable vacuum hood.

GANTRY

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

TOOL HOLDER CLAMP

The Techno Goliath CNC Machine comes equipped with a tool holder clamp fixture, providing a much easier way of inserting and tightening the CNC router bits into your tool holder. This method is safer and easier than using the common procedure of tightening the collet nut with two wrenches while the tool holder is still in the spindle.

BASE FRAME

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

TOOL CALIBRATION

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program. The Goliath includes (2) calibration pads; 1st is for fixed position, which records all tool length offsets and 2nd is for setting Z-Zero.

VACUUM TABLE

The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

DRIVE TRAIN ASSEMBLY

The Techno Goliath Series CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability​

TOOLING

The Goliath Series machine includes an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

Controller options

Hand-Held Controller

The hand-held controller is the heart of the operational system. This hand-held controller redefines the phrase “easy-to-use”. Customers can be up and running the same day power is connected to the machine. The setup introduction manual provides information that will have users cutting parts in minutes

Win CNC Controller

The WinCNC interface is a controller system with step jog for fine incremental control, start, stop and pause buttons, single button for safety clearance position, absolute and relative coordinates control, and more.

Take a Closer Look
