Techno Tooling

The newest line of CNC tooling solutions by Techno CNC

Specializing in industrial quality solid carbide cutting tools for the woodworking, plastics, and aluminum industries.

Techno CNC is proud to introduce our new CNC router bit product line. Techno CNC has developed tooling kits for specific routing market applications, making tooling selection for production shops easy.

All tooling can be purchased at our online shop www.technocncshop.com

SHOP HERE

Our Tool Kits

19 PC SIGNMAKING TOOL KIT

This tooling kit was developed by Techno’s application engineers who have a vast background in sign making. The selection, size, and tooling geometry was specific to the materials that sign makers cut. The tools included can rout wood, plastic, foam, and non-ferrous metals. The kit also includes a 1-1/2” diameter spoil-board cutter for resurfacing the machine sacrificial deck.

What's Included

  • Total pieces: 19
  • 1-1/4″ Spoilboard Tip Cutter
  • 120 Degree V-Groove
  • 90 Degree V-Groove
  • 60 Degree V-roove
  • 1/4″ Spiral O’Flute Plastic Cutting Up-Cut
  • 1/8″ Spiral O’Flute Plastic Cutting Up-Cut
  • 1/4″ Spiral O’Flute Aluminum Cutting Up-Cut
  • 1/8″ Spiral O’Flute Aluminum Cutting Up-Cut
  • 30 Degree Engraving Bit .004 tip
SHOP HERE

11 PC NESTED BASE MANUFACTURING TOOL KIT

This tooling kit was developed by Techno’s application engineers who have quite a bit of experience with cabinet and custom millwork shops. It includes an assortment of composite wood and hardwood router bits. The kit also includes a 2-1/2” diameter spoil-board cutter for resurfacing the machine sacrificial deck.

What's Included

  • Total pieces: 11
  • 2-1/2″ spoil board insert cutter
  • 1/4″ compression spiral
  • 3/8″ compression spiral
  • 1/4″ downward spiral SW endmill
  • 5mm x 27 mm drill bit
  • Wood box





SHOP HERE

25 PC TOOL KIT

This is an ideal starter kit for companies that route wood, plastic, and non-ferrous metals. The kit includes an assortment of popular sizes for each material. The kit also includes a 2-1/2” diameter spoil-board cutter for resurfacing the machine sacrificial deck.

What's Included

  • Total pieces: 25
  • 2-1/2″ spoil board insert cutter
  • 1/4″ compression spiral
  • 3/8″ compression spiral
  • 1/8″ spiral O-flute, plastic cutting up-cut
  • 1/4″ spiral O-flute, plastic cutting up-cut
  • 1/8″ spiral O-flute, aluminum cutting up-cut
  • 1/4″ spiral O-flute, aluminum cutting up-cut
  • 90 degree V-groove
  • 60 degree V-groove
  • 1/4″ downward spiral SW endmill
  • 3/8″ downward spiral SW endmill
  • Wood box
SHOP HERE

26 PC TOOL KIT

This is another ideal starter kit for companies that route wood, plastic, and non-ferrous metals. The kit includes a variety of popular sizes and styles for the different materials.

What's Included

  • Total pieces: 26
  • 1/4″ compression spiral
  • 3/8″ compression spiral
  • 1-1/4″ spoil board carbide tip cutter
  • 1/8″ spiral O-flute, plastic cutting up-cut
  • 1/4″ spiral O-flute, plastic cutting up-cut
  • 1/16″ x 1/4″ tapered ballnose DLC coating
  • 1/8″ spiral O-flute, aluminum cutting up-cut
  • 1/4″ spiral O-flute, aluminum cutting up-cut
  • 90 degree V-groove
  • 60 degree V-groove carbide
  • 1/8″ ballnose endmill
  • 1/4″ downward spiral SW endmill
  • 30 degree engraving bit .004 tip
  • Wood box
SHOP HERE

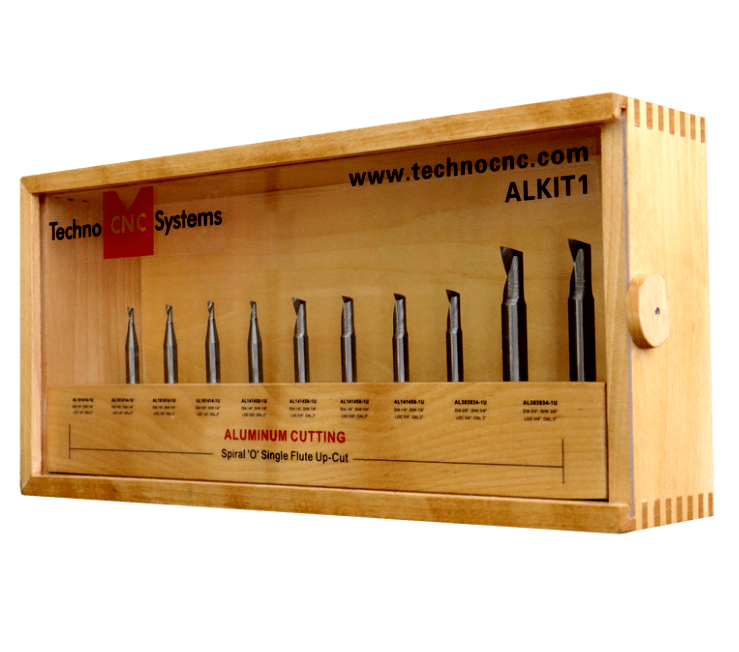

10 PC ALUMINUM TOOL KIT

This kit includes assorted sizes of routing bits designed specifically for aluminum routing. The tool geometry is designed for extracting the chips from the cut while minimizing heat buildup. These router bits provide optimal cutting performance and edge finish.

What's Included

  • Total pieces: 10
  • 1/8″ spiral O-flute, aluminum cutting up-cut
  • 1/4″ spiral O-flute, aluminum cutting up-cut
  • 3/8″ spiral O-flute, aluminum cutting up-cut
  • Wood box
SHOP HERE

10 PC UP-CUT PLASTIC TOOL KIT

This kit includes assorted sizes of routing bits designed specifically for plastic routing. These router bits provide optimal cutting performance and edge finish for all plastic cutting applications.

What's Included

  • Total pieces: 10
  • 1/8″ spiral O-flute, plastic cutting up-cut
  • 1/4″ spiral O-flute, plastic cutting up-cut
  • 3/8″ spiral O-flute, plastic cutting up-cut
  • Wood box
SHOP HERE

10 PC EDUCATIONAL TOOL KIT

This kit includes assorted sizes of routing bits designed specifically for wood, aluminum and plastic routing. These router bits provide optimal cutting performance and edge finish for a variety cutting applications.

What's Included

  • Total pieces: 10
  • 1/4″ compression spiral
  • 1/8″ spiral O-flute, plastic cutting up-cut
  • 1/4″ spiral O-flute, plastic cutting up-cut
  • 1/8″ spiral O-flute, aluminum cutting up-cut
  • 1/4″ spiral O-flute, aluminum cutting up-cut
  • 90 degree V-groove
  • 1/4″ downward spiral SW endmill
  • Wood box
SHOP HERE

6 PC V-GROOVE TOOL KIT

This kit is designed primarily for sign makers. The V-groove bits selected are the most popular sizes and angles that sign makers use. This kit is also ideal for schools where students can learn routing and engraving skills.

What's Included

  • Total pieces: 6
  • 120 degree V-groove
  • 90 degree V-groove
  • 60 degree V-groove
  • Wood box
SHOP HERE

5 PC UP-CUT ALUMINUM TOOL KIT

This kit includes assorted sizes of routing bits designed specifically for aluminum routing or replenishing a larger kit. These router bits provide optimal cutting performance and edge finish for all aluminum cutting applications.

What's Included

  • Total pieces: 5
  • 1/4″ spiral O-flute, aluminum cutting up-cut
  • Wood box
SHOP HERE

Select the Right Cutting Tools and Calculate Proper Feeds and Speeds

The key to optimizing your Techno CNC equipment and getting the best cut quality at the most efficient rate all depends on the tool selection and proper feeds and speeds calculation. Since these seemingly small variables have such a large impact on the outcome of a CNC project, it is crucial that operators and programmers understand the methods in which a bit is selected and how to calculate the proper feeds and speeds for the cutting tool. CNC router bit choice is important in regard to chip load, which is the size of the chip produced for every cutting edge (flute) on the tool per revolution of the spindle. The goal with chip load is to maximize the size of the chips increasing productivity, reducing heat produced on the tool, and preventing premature dulling. A chip load that is too small will produce a lot of heat, causing the bit to dull very quickly, inevitably breaking the cutting tool. A chip load that is too large will cause the tool to deflect, producing a “chatter” cut finish and in some extreme cases, break the tool.

Selecting a Techno CNC Router Bit

Materials: Router bits are produced in a variety of material The most common are solid carbide, carbide-tipped steel, and high-speed steel. The Techno CNC tools are all produced using solid carbide as this material is proven to be a much stronger make up and will stay sharper longer. We do not recommend using high-speed steel bits, as they are prone to dulling quickly and needing to be re-sharpened.

Flute Shapes: Router bits are formed into three different, yet distinct shapes; straight, spiral up-cut, spiral down-cut, and compression. Each style has advantages and disadvantages which we have listed in the chart below.

Previous
Next

To calculate chip load, use the following formula:

Chip Load = Feed Rate / (Spindle RPM x Number of Flutes)

Calculating Feeds and Speeds Using Chipload

Chip load is the actual thickness of a single chip produced by the cutting tool for each revolution of the cutter. This same size chip load should be produced for every flute on the cutter as it rotates, engaging the substrate being cut. This is the measurement that all feed/speeds calculations are based on.

A rotating cutter generates friction as it engages and moves through the cutting material, producing heat. A portion of this heat is transferred through the chips that fly out of the cut. A larger chip load reduces the amount of heat produced, but also provides more stress on the cutting tool. Every material has its own ideal chip load range that balances heat transfer with cutter stress.

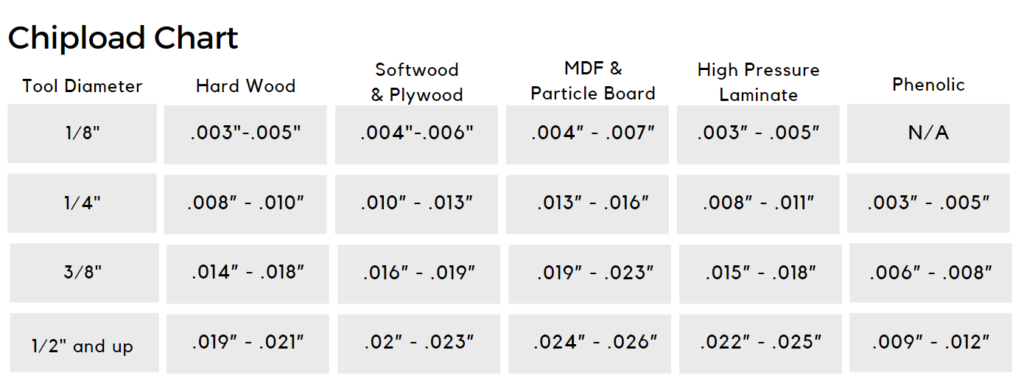

A basic chart is provided at the end of this manual showing the ideal chip load range for specific materials utilizing various diameter tools. Read through this chart as it will also explain recalculating chip loads at more aggressive depths of cuts.

Valuable Formulas:

Feed Rate = RPM x number of flutes x chip load

Chip Load = Feed rate / (RPM x number of flutes)
