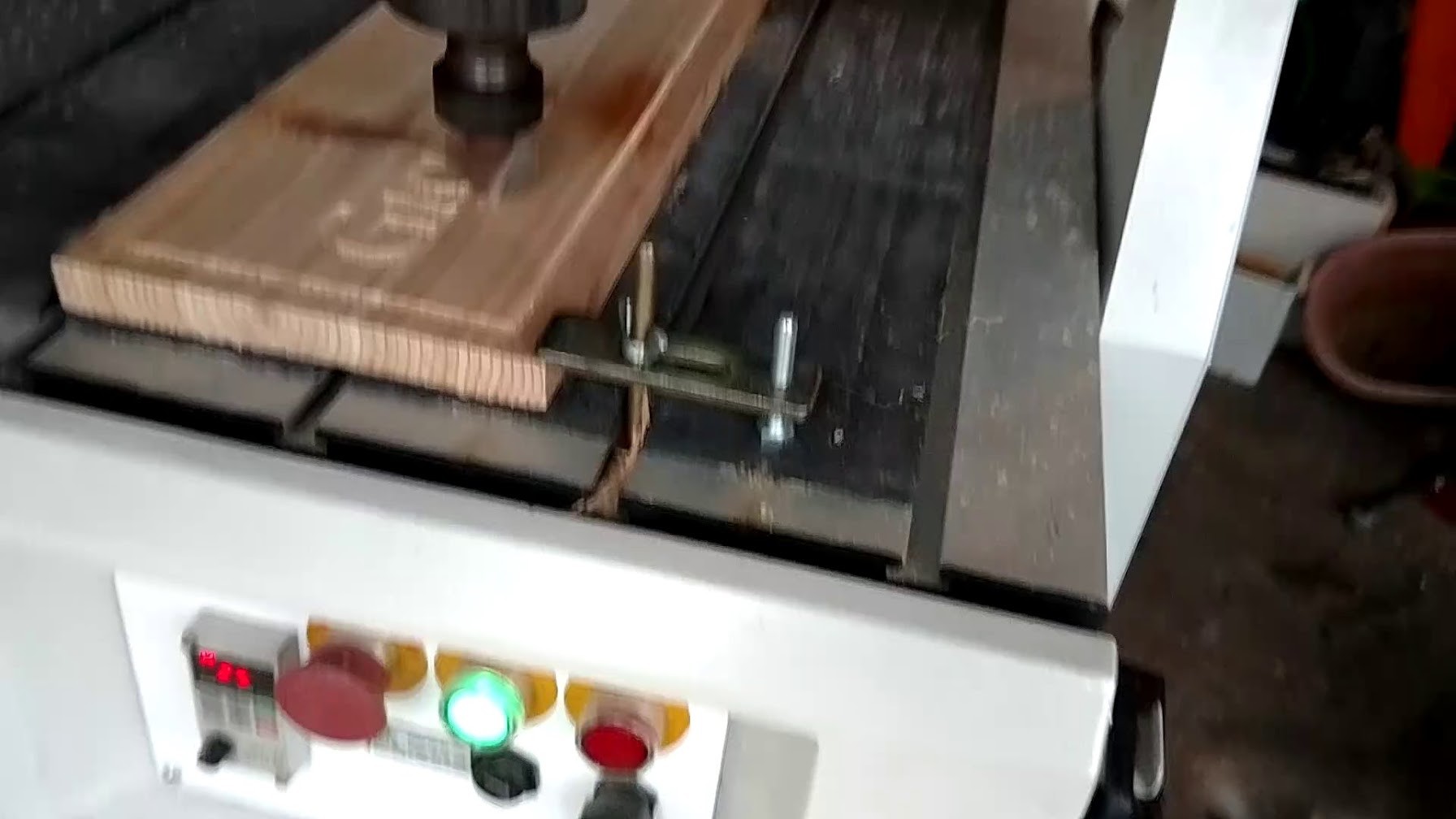

HD MINI SERIES CNC ROUTER

DESCRIPTION:

The HD Series CNC Router is manufactured using the highest quality industrial grade CNC router components with all steel construction with a 7-1/2” gantry clearence and z-axis  stroke. Key features include THK linear guide rails and bearings, precision helical rack and pinion with precision gear motors directly coupled to the helical pinion. The HD series includes a 4 HP HSD collet spindle, vacuum hood with concentrated air flow at the tool, and a vacuum t-slot table controlled by a central gate valve.



FEATURES:

  • 23″ x 35″ Process area
  • 2 HP HSD high frequency collet spindle
  • Aluminum T-slot table for easy part fixturing
  • Automatic tool calibration pad
  • Brushless micro stepper motors and controls
  • Linear rails and bearings
  • Precision ball screws on all three axes
  • Easy-to-use hand-held controller

HD MINI FEATURES

MICRO-DROP COOLANT SYSTEMS:

The Micro-Drop Coolant System is ideal for use with the Techno HD Mini CNC Router. The unit's microdispenser delivers a very small amount of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

CONTROLLER:

The hand-held controller is the heart of the operational system. This hand-held controller redefines the phrase “easy-to-use”. Customers can be up and running the same day power is connected to the machine. The setup introduction manual provides information that will have users cutting parts in minutes.

BRAILLE INSERTION TOOL:

Techno offers a Braille Insertion Tool that mounts in your spindle and by repeating the drill routing (with the spindle turned off), it will install the Braille beads automatically and set the depth precisely. You can program the sign and using a simple drill routine, drill the holes. Then repeat the same routine to insert the Braille balls (acrylic or stainless) without reconfiguring the machine making the time-consuming, manual tedious process of inserting the balls by hand obsolete.

SOFTWARE:

Techno understands your needs and keeps it simple, giving you the tools to produce your product, and most important providing a quick return on investment. Performance, software programming tools, Ease-of-use, learning curve, support, and scheduled updates are the ingredients we looked for when selecting programming solutions to integrate with our equipment. With this stringent criteria, we researched the software industry and concluded that Vectric Software VCarve Pro and Aspire were selections offering the tools that support the majority of our customer needs

Take a Closer Look
